Overview

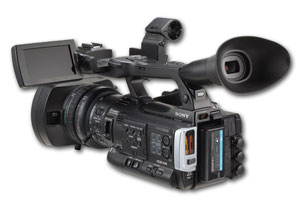

The PMW-200 is the successor to Sony’s well respected PMW-EX1/R camcorder which supports the 50 Mbps MPEG HD422 codec and MXF recording. It is a good companion to the PMW-500 XDCAM HD422 shoulder mount camera. With its three 1/2-inch Full HD Exmor CMOS sensors (1920×1280), the PMW-200 is able to achieve high resolution (1000 TVl), high sensitivity (F11@2000 lx), low noise (56 dB), and wide dynamic range. The PMW-200 can be used for both SD and HD applications.



It can be set to record 50 Mbps MPEG HD422 as MXF files on UDF formatted cards just like the PMW-500 memory camcorder or the PDW-700/F800 optical disc based camcorders. Or you can set the camcorder for FAT mode recording to shoot SxS cards which are compatible with the XDCAM EX format made by the PMW-EX1/R or PMW-320/350. For SD applications you can make DVCAM recordings as either MXF files or XDCAM EX compatible files.

Storage Temperature Battery Operating Time Operating Temperature Power Consumption Power Requirements Dimensions (W x H x D) Mass

-20°C to +60°C (-4°F to +140°F) Approx. 2 hrs with BP-U30 battery Approx. 4 hrs with BP-U60 battery Approx. 6 hrs with BP-U90 battery 0°C to 40°C (32°F to 104°F) Approx. 12 W (while recording, EVF On, LCD monitor Off, IO Select Off) Approx. 14 W (while recording, EVF On, LCD monitor On, IO Select HD SDI & HD HDMI) DC 12 V 172 x 164 x 317 mm (6 7/8 x 6 1/2 x 12 1/2 inches) (without protrusions) Approx 2.3 kg (body) Approx. 2.7 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card

UDF FAT UDF FAT

HD422 mode: CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL DVCAM Mode: DVCAMHQ 1920 mode: VBR, 35 Mbps, MPEG-2 MP@HL HQ 1440 mode: VBR, 35 Mbps, MPEG-2 MP@HL HQ 1280 mode: VBR, 35 Mbps, MPEG-2 MP@HL SP 1440 mode: CBR, 25 Mbps, MPEG-2 MP@H-14 DVCAM Mode: DVCAMHD422 mode: LPCM 24 bits, 48 kHz, 4 channels Other mode: LPCM 16 bits, 48 kHz, 4 channels HD mode: LPCM 16 bits, 48 kHz, 4 channels SD mode: LPCM 16 bits, 48 kHz, 2 channels

(UDF) HD422 Mode: MPEG-2 422P@HL, 50Mbps/CBR (UDF) HD420 Mode: MPEG-2 MP@HL, 35Mbps/VBR (UDF) DVCAM Mode (FAT) HQ 1920 Mode: MPEG-2 MP@HL, 35Mbps/VBR (FAT) HQ 1440 Mode: MPEG-2 MP@HL, 35Mbps/VBR (FAT) HQ 1280 Mode: MPEG-2 MP@HL, 35Mbps/VBR (FAT) SP 1440 Mode: MPEG-2 MP@H-14, 25Mbps/CBR

1920×1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1280×720/ 59.94p, 50p, 29.97p, 25p, 23.98p1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1280×720/ 59.94p, 50p, 23.98p720x480/ 59.94i, 29.97PsF 720×576/ 50i, 25PsF1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1440×1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1280×720/ 59.94p, 50p, 29.97p, 25p, 23.98p 1440×1080/ 59.94i, 50i, 23.98p (2-3 pull down)
